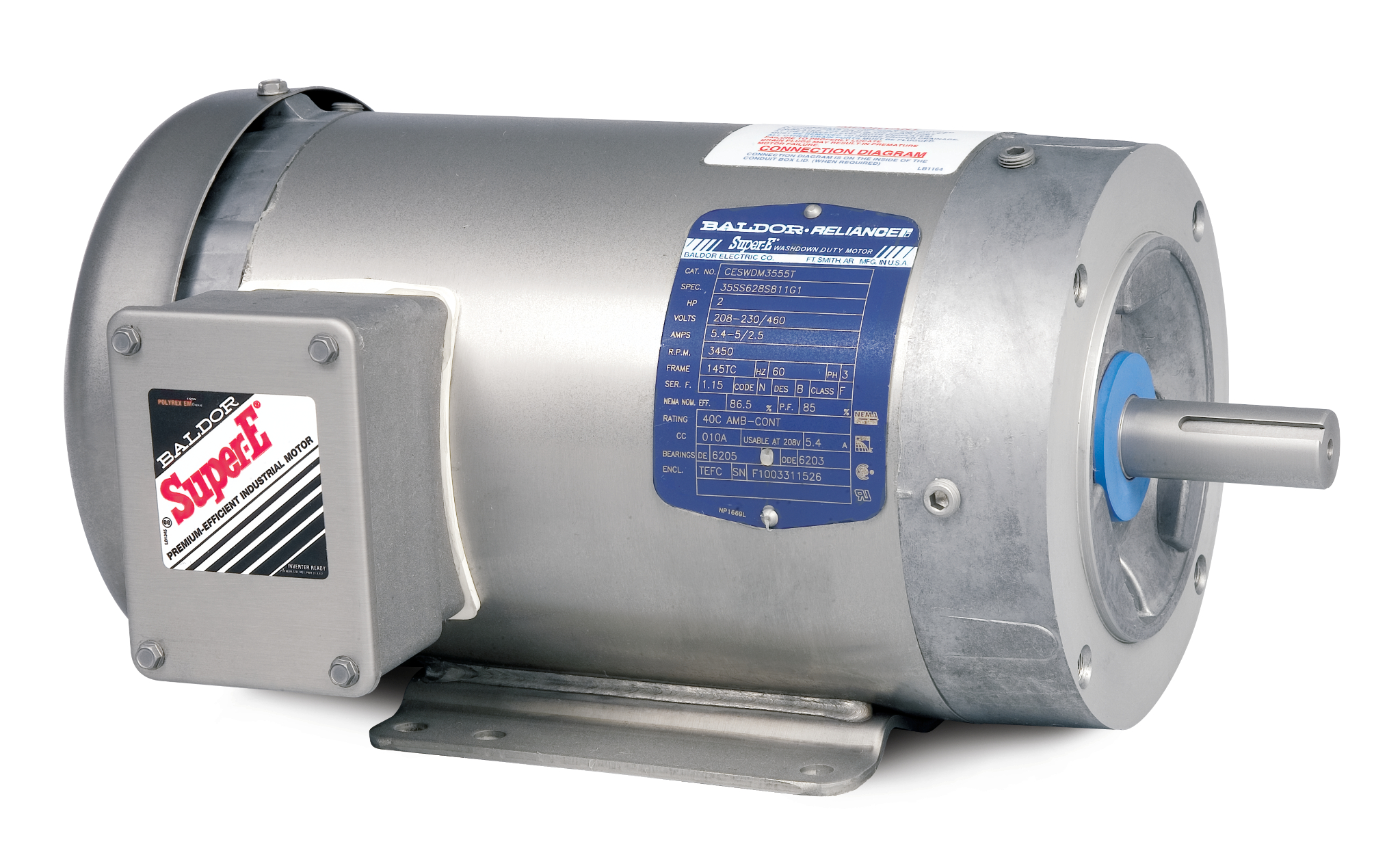

CESWDM3714T

Ship Weight	165.000 LB
UPC	781568527238

Specs

Catalog Number CESWDM3714T

Enclosure TEFC

Frame 215TC

Frame Material Stainless Steel

Frequency 60.00 Hz

Motor Letter Type Three Phase

Output @ Frequency 10.000 HP @ 60 HZ

Phase 3

Synchronous Speed @ Frequency 1800 RPM @ 60 HZ

Voltage @ Frequency 230.0 V @ 60 HZ
460.0 V @ 60 HZ

Haz Area Class and Group None

Haz Area Division Not Applicable

Agency Approvals NEMA_PREMIUM
UR
NEMA PREMIUM
CSA EEV

Ambient Temperature 40 °C

Auxillary Box No Auxillary Box

Auxillary Box Lead Termination None

Base Indicator Rigid

Bearing Grease Type Polyrex EM (-20F +300F)

Blower None

Current @ Voltage 12.500 A @ 460.0 V
25.000 A @ 230.0 V

Design Code A

Drip Cover No Drip Cover

Duty Rating CONT

Efficiency @ 100% Load 91.7 %

Electrically Isolated Bearing Not Electrically Isolated

Feedback Device NO FEEDBACK

High Voltage Full Load Amps 12.5 a

Front Face Code Standard

Front Shaft Indicator None

Heater Indicator No Heater

Insulation Class F

Inverter Code Inverter Ready

KVA Code K

Lifting Lugs Standard Lifting Lugs

Locked Bearing Indicator Locked Bearing

Motor Lead Exit Ko Box

Motor Lead Termination Flying Leads

Motor Lead Quantity/Wire Size 9 @ 14 AWG

Motor Type 3752M

Mounting Arrangement F1

Number of Poles 4

Overall Length 21.31 IN

Power Factor 85

Product Family Wash Down Paint Free

Pulley End Bearing Type Sealed Bearing

Pulley Face Code C-Face

Pulley Shaft Indicator Standard

Rodent Screen None

Service Factor 1.15

Shaft Diameter 1.375 IN

Shaft Extension Location Pulley End

Shaft Ground Indicator No Shaft Grounding

Shaft Rotation Reversible

Shaft Slinger Indicator Shaft Slinger

Speed 1770 rpm

Speed Code Single Speed

Motor Standards NEMA

Starting Method Direct on line

Thermal Device - Bearing None

Thermal Device - Winding None

Vibration Sensor Indicator No Vibration Sensor

Winding Thermal 1 None

Winding Thermal 2 None

Drawings

CAD File

2D CAD

3D CAD

Remove

Add

Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.

The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.

CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.

CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.

CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.

Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.

Building download package.

Nameplate

CAT.NO.	CESWDM3714T
SPEC.	37H888L865G1
HP	10
VOLTS	230/460
AMP	25/12.5
RPM	1770
FRAME	215TC			HZ		60				PH		3
SER.F.	1.15	CODE			K	DES		A	CLASS		F
NEMA-NOM-EFF	91.7		PF		85
RATING	40C AMB-CONT
CC	010A
DE	6307			ODE			6206
ENCL	TEFC	SN
BLANK
	NP1669L

Performance

Performance at 460 V, 60 Hz, 10 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque 0 LB-FT

No-Load Current 0 A

Line-Line Res. @ 25° C 0.957 Ohms A Ph / 0 Ohms B Ph

Temp. Rise @ Rated Load 69° C

Temp. Rise @ S.F. Load 86° C

Start Configuration DOL

Break-Down Torque 102 LB-FT

Pull-Up Torque 46.9 LB-FT

Locked-Rotor Torque 62.2 LB-FT

Starting Current 101 A

Load Characteristics

Rated Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power Factor	5.0	44.0	66.0	77.0	81.0	84.0	85.0	84.0
Efficiency	0.0	88.4	91.8	92.4	92.1	91.0	89.9	91.4
Speed (RPM)	1,799	1,793	1,786	1,778	1,770	1,761	1,751	1,762
Line Amps	5.33	6.05	7.73	9.90	12.50	15.30	18.30	14.10

Performance Curves

Parts

Part Number	Description	Quantity
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	2.000 EA
MN416A01	TAG-INSTAL-MAINT no wire (2500bx)4/22	1.000 EA
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1.000 EA
