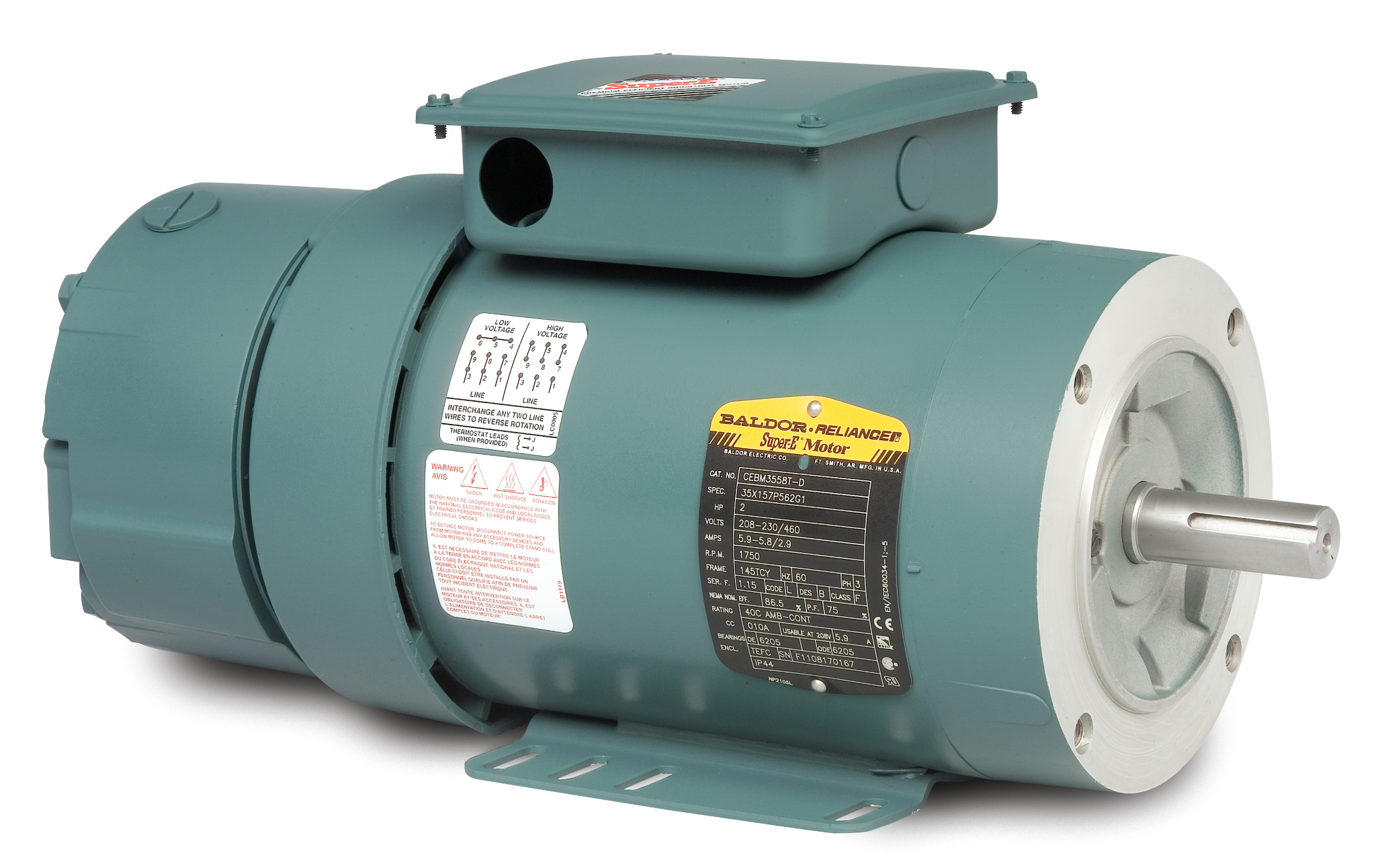

CEBM3558T-D

2HP, 1750RPM, 3PH, 60HZ, 145TYC, 3528M, TEFC, F

Product Information Packet PDF

Ship Weight 61.000 LB
UPC 781568538203

Specs

Catalog Number CEBM3558T-D
Enclosure TEFC
Frame 145TCY
Frame Material Steel
Frequency 60.00 Hz
Output @ Frequency 2.000 HP @ 60 HZ
Phase 3
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Voltage @ Frequency 460.0 V @ 60 HZ
230.0 V @ 60 HZ
XP Class and Group None
XP Division Not Applicable
Agency Approvals CE
CSA
CSA EEV
UR
WEEE
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Brake Torque 10.0 lb-ft
Current @ Voltage 5.900 A @ 208.0 V
5.800 A @ 230.0 V
2.900 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 86.5 %
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device NO FEEDBACK
High Voltage Full Load Amps 2.9 a
Front Face Code Fan Housing Cover For Brake
Front Shaft Indicator None
Heater Indicator No Heater
Insulation Class F
Inverter Code Inverter Ready
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Termination Flying Leads
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Type 3528M
Mounting Arrangement F3
Number of Poles 4
Overall Length 17.35 IN
Power Factor 75
Product Family General Purpose
Product Type D-SERIES BRAKE MOTORS
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1750 rpm
Speed Code Single Speed
Motor Standards NEMA
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 None
Winding Thermal 2 None

Drawings

{{ getDrwKindName(drawing.kind) }}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.

Nameplate

CAT.NO. CEBM3558T-D
SPEC. 35X157P562G1
HP 2
VOLTS 230/460
AMP 5.8/2.9
RPM 1750
FRAME 145TCY HZ 60 PH 3
SER.F. 1.15 CODE L DES B CL F
NEMA-NOM-EFF 86.5 PF 75
RATING 40C AMB-CONT
CC 010A USABLE AT 208V 5.9
DE 6205 ODE 6205
ENCL TEFC SN
IP44
NP2934L

Performance

Performance at 460 V, 60 Hz, 2 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque 0 LB-FT
No-Load Current 0 A
Line-Line Res. @ 25° C 7.66 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load 75° C
Temp. Rise @ S.F. Load 90° C
Start Configuration DOL
Break-Down Torque 24.6 LB-FT
Pull-Up Torque 12.2 LB-FT
Locked-Rotor Torque 17.9 LB-FT
Starting Current 23.7 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 7.0 33.0 53.0 67.0 75.0 80.0 84.0 78.0
Efficiency 0.0 77.7 85.4 86.9 86.6 85.8 84.2 86.1
Speed (RPM) 1,799 1,789 1,778 1,765 1,751 1,737 1,721 1,743
Line Amps 1.72 1.80 2.04 2.39 2.88 3.39 4.01 3.19

Performance Curves

Parts

Part Number Description Quantity
MN416A01 TAG-INSTAL-MAINT no wire (2100/bx) 4/22 1.000 EA
