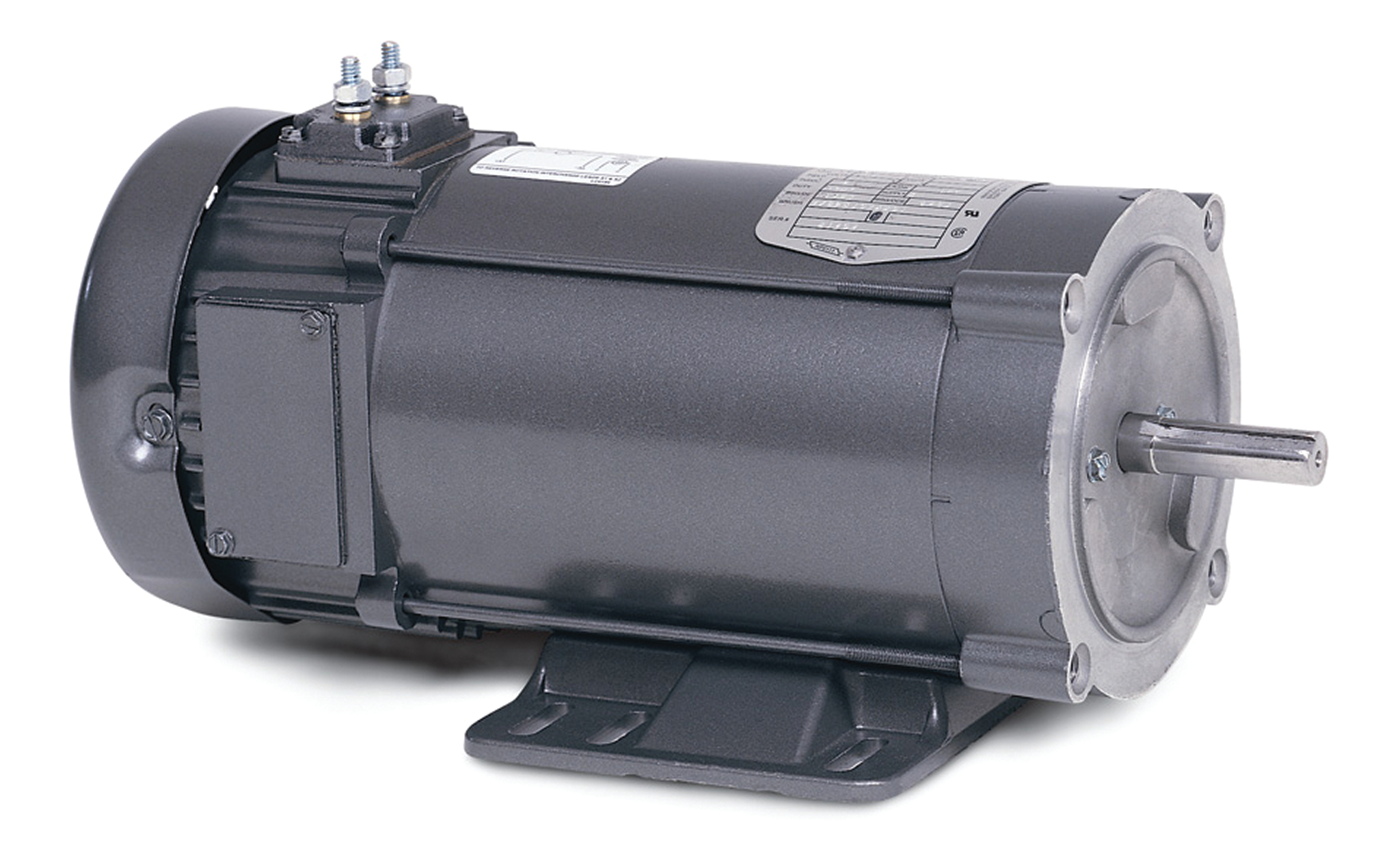

CDP3410-V24

.25HP, 1800RPM, DC, 56C, 3416P, TENV, F1

Product Information Packet PDF

Ship Weight 23.000 LB
UPC 781568388112

Specs

Armature Voltage 24 V
Base Speed 1800 rpm
Enclosure TENV
Frame 56C
Frame Material Steel
Output Power 0.250 HP
XP Class and Group None
Agency Approvals CSA
UR
Ambient Temperature 40 °C
Armature Current 10.6 a
Armature Inertia 5.510 lb-ft2
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Feedback Device NO FEEDBACK
Heater Indicator No Heater
Insulation Class F
Lifting Lugs No Lifting Lugs
Motor Lead Exit Ko Box
Motor Lead Termination Flying Leads
Motor Lead Quantity/Wire Size 2 @ 14 AWG
Mounting Arrangement F1
Overall Length 11.60 IN
Product Family General Purpose
Pulley End Bearing Type Sealed Bearing
Service Factor 1.00
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Motor Standards NEMA
XP Division Not Applicable

Drawings

{{ getDrwKindName(drawing.kind) }}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.

Nameplate

CAT.NO. CDP3410-V24
SPEC. 34-6943Z610G1
HP .25 ENCL TENV
RPM 1800
FRAME 56C TYPE 3416P
ARM V 24 ARM A 10.6
FLD V FLD A
INSUL F AMB. 40
DUTY CONT SUPPLY A
BRG/DE 6203 BRG/ODE 6203
BRUSHES 2/BP5104BV01
BLANK
SER.
BLANK
APRV-CSA APRV-UL
NP0111L

Performance

Performance at 24 Arm V, 0.25 HP

Typical performance; not guaranteed values.

General Characteristics

Armature Resistance 0.129 ohms
Series Winding Resistance
Armature Inductance 0.936 mH
Maximum Rated RPM With Field Weakening
Commutating Winding Resistance
Shunt Winding Resistance
Armature Inertia 5.5096 LI²
Maximum Allowable Inrush Amps

Load Characteristics

Load Point 1 2 3 4 5 6 7
Armature Amps 2.4 5.05 7.74 10.65 13.4 16.01 18.82
RPM 1825 1795 1753 1707 1666 1635 1596
Torque 0 0.25 0.5 0.75 1 1.25 1.5

Performance Curves

Parts

Part Number Description Quantity
MN416A01 TAG-INSTAL-MAINT no wire (2100/bx) 4/22 1.000 EA
