3AUA0000152847

DCS800-EP2-0140-05+E213+F278+M636

Product Information Packet PDF

Ship Weight 88.000 LB
UPC 781568743003
Product has been discontinued

Specs

Enclosure NEMA OPEN
Input Voltage Nominal 480.00 V
Mounting Method EP2 PANEL DRIVE
Rated Output Power Range 60
Frame A
Input Current Constant Torque 85.00 a

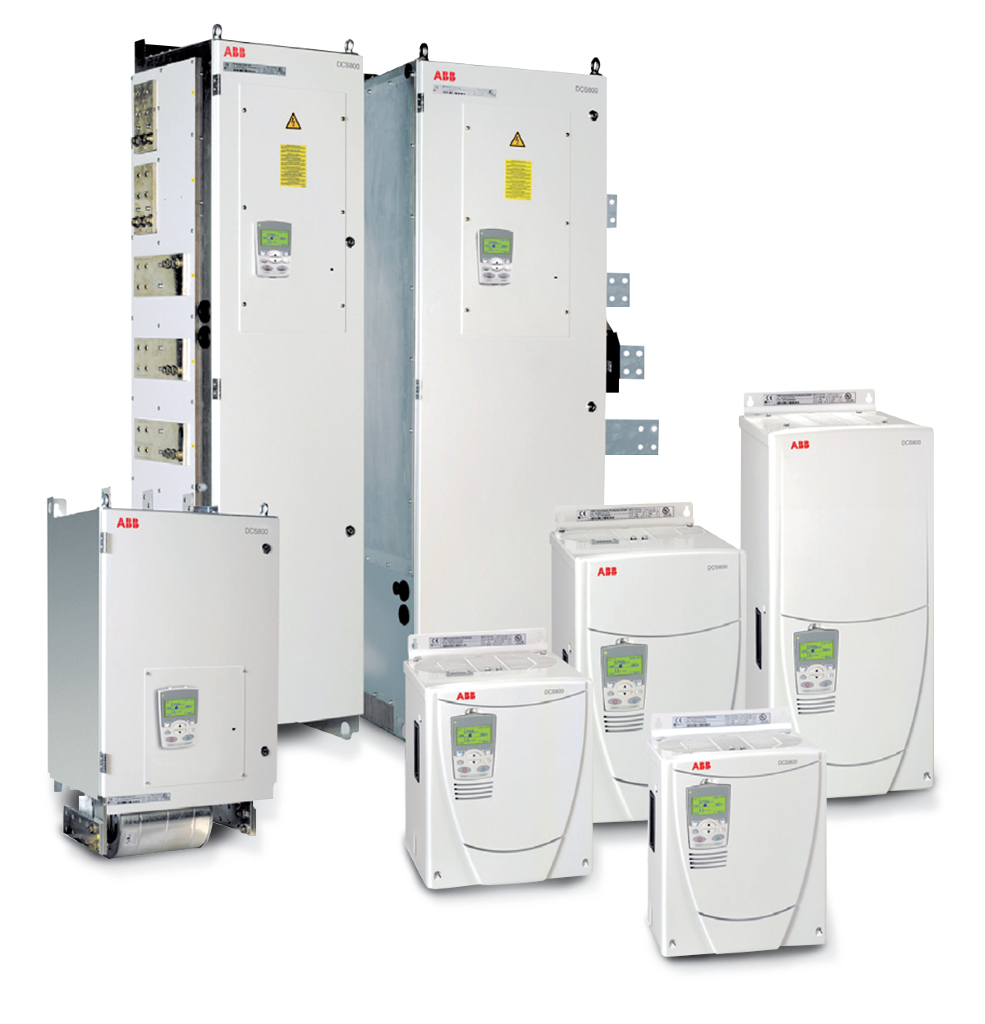

Product Series DCS800 DC DRIVE
Short Circuit Current 65KA RMS SYMETRICAL, 500V MAX

Drawings

{{getDrwKindName(drawing.kind)}}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.

Accessories

Part Number Description List Price
58948250 FIBRE OPTIC CABLE NLWC-05 OPTION/SP KIT
58948268 FIBRE OPTIC CABLE NLWC-07 OPTION/SP KIT
58948276 NLWC-10 OPTION.SP KIT FIBRE OPTIC CABLE
61046534 TWIN FIBREOPT CA QFBR-3883(HFBR-END010
61059113 TWIN FIBREOPT. CA 5,0 M 241.00 USD
61059121 TWIN FIBREOPT. CA 2,0 M 172.00 USD
61059130 TWIN FIBREOPT. CA 0,5 M
64606778 MODBUS ADAPTER RMBA-01 OPTION/SP KIT
64606816 DIGITAL I/O EXTEN RDIO-01 OPTION/SP KIT
64606841 ANALOG I/O EXTENS RAIO-01 OPTION/SP KIT
64606859 RPBA-01 PROFIBUS-DP ADAPTER-KIT 465.00 USD
64606905 RCAN-01 CANOPEN OPTION/SP KIT
64610805 PULSE ENCODER INT RTAC-01 OPTION/SP KIT 465.00 USD
64751701 BAC, RCNA-01 Option 1,139.00 USD
64751727 RETA-01 ETHERNET ADAPTOR MODULE KIT 761.00 USD
68486408 RESOLVER INTERFAC RRIA-01 OPTION/SP KIT
68654947 PULSE ENCODER INT RTAC-03 OPTION/SP KIT 465.00 USD
68805848 PULSE ENCODER INTERFACE 465.00 USD
