380T

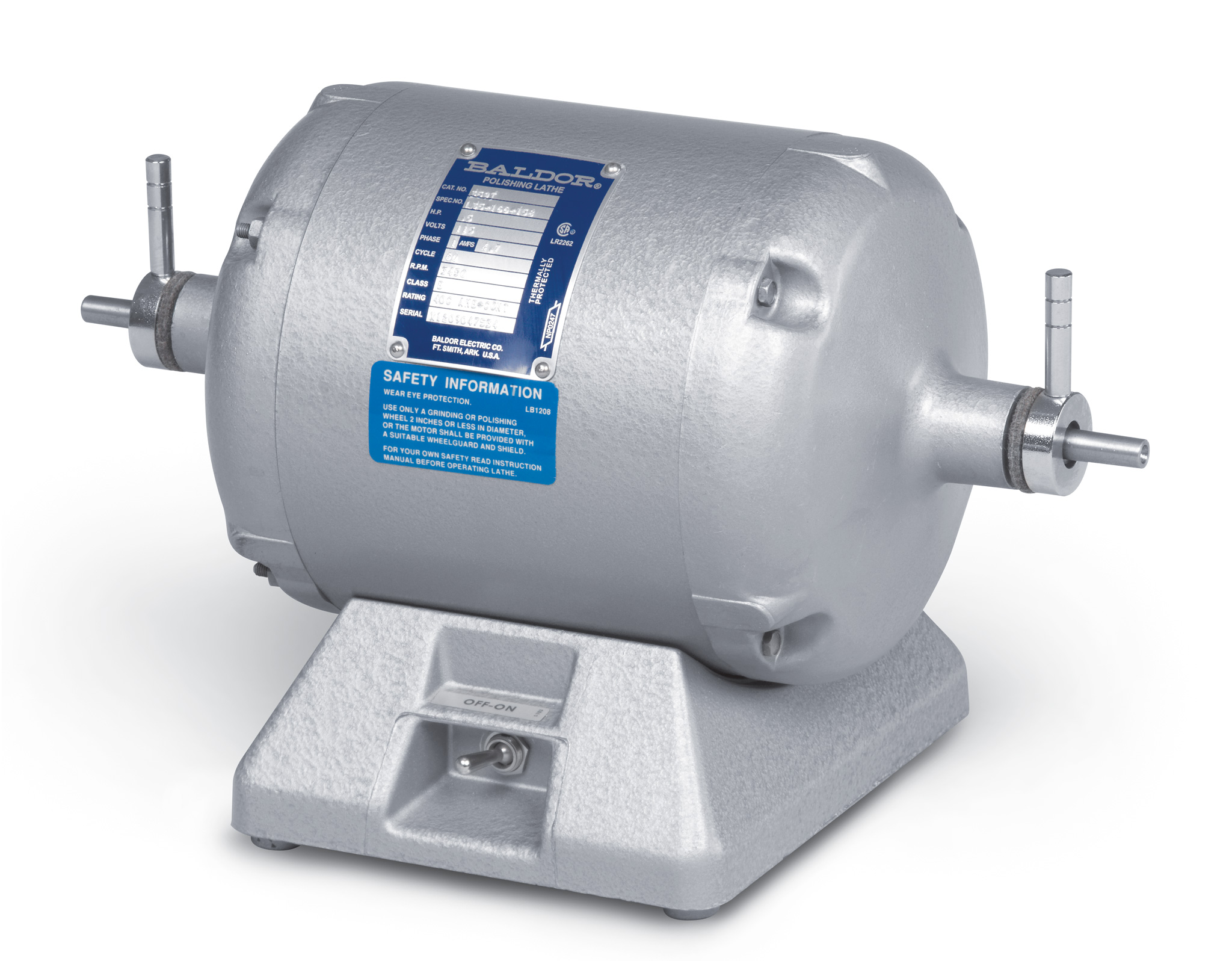

28L 2/4P POLISHING LATHE DBL-SHAFT MT

Product Information Packet PDF

Ship Weight 42.000 LB
UPC 781568127841

Specs

Catalog Number 380T
Enclosure TENV
Frame Material Steel
Frequency 60.00 Hz
60.00 Hz
Motor Letter Type Cap Start, Induction Run
Nameplate Output .33/.17
Number of Poles 2
4
2
4
Output @ Frequency .170 HP @ 60 HZ
.330 HP @ 60 HZ
Phase 1
1
Product Style DENTAL LATHE
Shaft Diameter 0.376 IN
0.376 IN
Speed 1710 rpm
3430 rpm
1710 rpm
3430 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Voltage 115 V
Voltage @ Frequency 115.0 V @ 60 HZ
Agency Approvals UR
CSA
Ambient Temperature 40 °C
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Current @ Voltage 3.800 A @ 115.0 V
Design Code -
Duty Rating CONT
Feedback Device NO FEEDBACK
Insulation Class B
KVA Code -
Motor Lead Quantity/Wire Size 3 @ 18 AWG
Motor Type 3528L
Mounting Arrangement F1
Overall Length 15.19 IN
Product Family Dental Lathe
Service Factor 1.00
Shaft Extension Location Pulley End
Shaft Rotation Fixed Opposite Standard
Shaft Slinger Indicator No Slinger
Speed Code 1Ph 2 Speed Pole Changing
Motor Standards Other
Starting Method Direct on line
Thermal Device - Winding Do Not Use
Winding Thermal 1 Manual Thermal Overload
Winding Thermal 1 Location SB
Winding Thermal 2 None

Drawings

Dimension Sheet

Connection Diagram

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.

Nameplate

CAT.NO. 380T
SPEC. L35-242G0330
HP .33/.17
VOLTS 115
PHASE 1 AMPS 3.8/2.4
CYCLE 60
RPM 3430/1710
CL B
RATING 40C AMB-CONT
SERIAL
NP3356L

Performance

Performance at 115 V, 60 Hz, 0.33 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque 0 LB-FT
No-Load Current 0 A
Line-Line Res. @ 25° C 2.2367 Ohms A Ph / 13.494 Ohms B Ph
Temp. Rise @ Rated Load
Temp. Rise @ S.F. Load
Start Configuration DOL
Break-Down Torque 2.54 LB-FT
Pull-Up Torque 0.75 LB-FT
Locked-Rotor Torque 1 LB-FT
Starting Current 24 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 32.0 60.0 74.0 83.0 87.0 89.0 90.0 0.0
Efficiency 0.0 52.0 63.4 66.1 65.1 61.5 53.5 0.0
Speed (RPM) 3,589 3,558 3,524 3,480 3,429 3,364 3,227 0
Line Amps 1.51 1.82 2.30 2.98 3.77 4.72 6.24 0.00

Performance Curves

Performance at 115 V, 60 Hz, 0.17 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque 0 LB-FT
No-Load Current 0 A
Line-Line Res. @ 25° C 2.2524 Ohms A Ph / 13.492 Ohms B Ph
Temp. Rise @ Rated Load
Temp. Rise @ S.F. Load
Start Configuration DOL
Break-Down Torque 1.55 LB-FT
Pull-Up Torque 0.636 LB-FT
Locked-Rotor Torque 1.03 LB-FT
Starting Current 23.5 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 25.0 42.0 59.0 70.0 78.0 83.0 87.0 0.0
Efficiency 0.0 42.4 56.2 60.3 60.1 56.7 48.7 0.0
Speed (RPM) 1,793 1,778 1,760 1,738 1,710 1,674 1,603 0
Line Amps 1.47 1.53 1.72 1.99 2.35 2.84 3.64 0.00

Performance Curves

Parts

Part Number Description Quantity
RM1005A01SP BUMPER- #2089 (R-R CO) 4.000 EA
LB1624 COMBINED WARNING LABEL, ISO/ANSI PICTOGR 1.000 EA
MN904 Baldor Polishing Lathes 6/05 1.000 EA

Accessories

Part Number Description List Price
R1 DR-3544 R1 RH CHUCK 164.00 USD
R2 DR-3546B R2 RH WHEEL CHUCK 120.00 USD
R5A BURR CHUCK-RH 270.00 USD
R6 ARBOR BAND CHUCK 91.00 USD
L3 DR-3545 LH HD WHEEL CHUCK 157.00 USD
L4 DR-3547B L4 LH SF WHEEL CHUCK 182.00 USD
