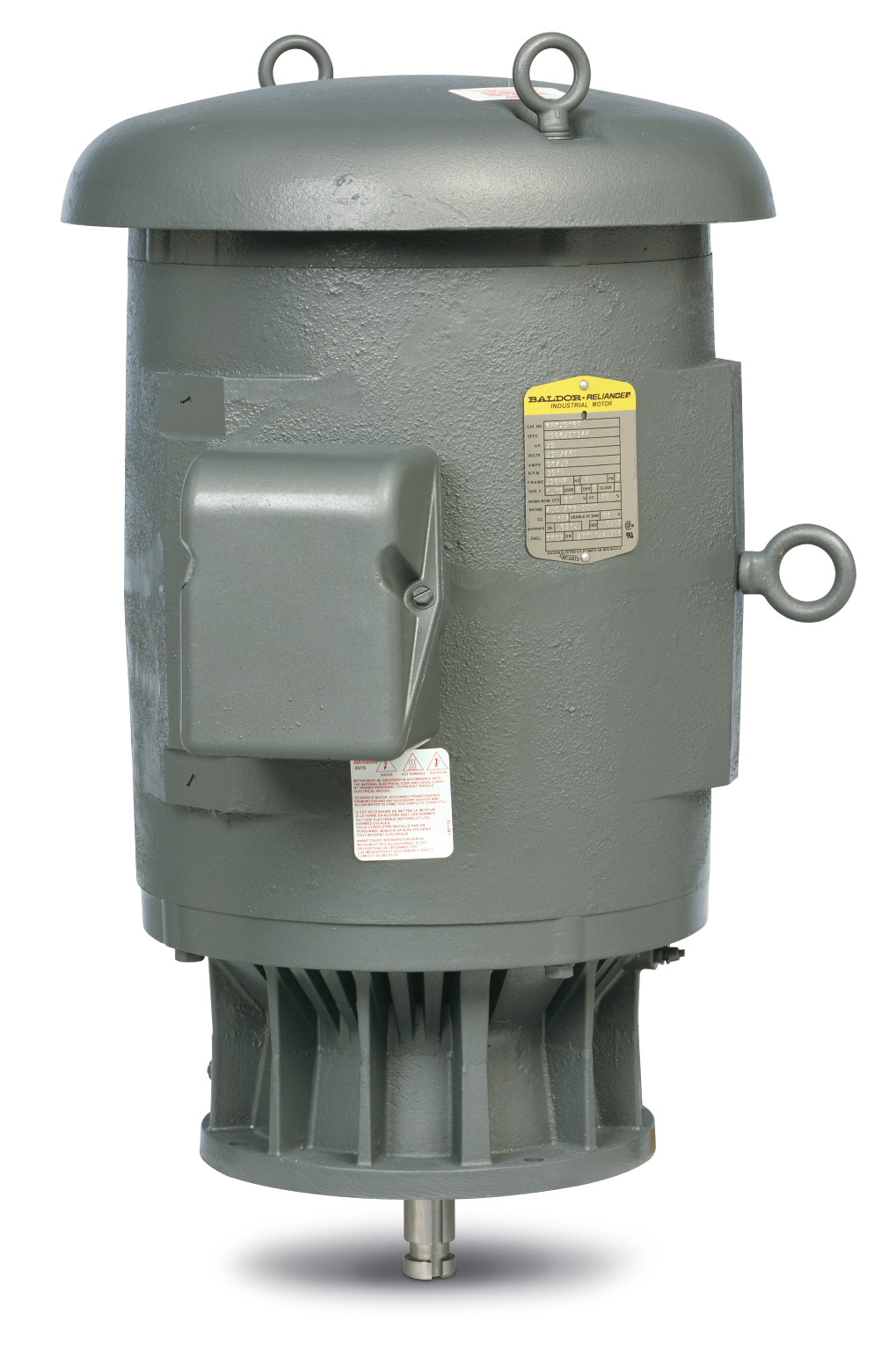

VHM2539T

40HP, 1775RPM, 3PH, 60HZ, 324HP, 1248M, OPEN

Product Information Packet PDF

Ship Weight 660.000 LB
UPC 781568398852
Product has been discontinued

Specs

Catalog Number VHM2539T
Enclosure ODP
Frame 324HP
Frame Material Cast Iron
Frequency 60.00 Hz
Motor Letter Type Three Phase
Output @ Frequency 40.000 HP @ 60 HZ
Phase 3
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Voltage @ Frequency 230.0 V @ 60 HZ
460.0 V @ 60 HZ
Haz Area Class and Group None
Haz Area Division Not Applicable
Agency Approvals CURUS
Ambient Temperature 40 °C
Auxiliary Box NO AUXILLARY BOX
Auxiliary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Current @ Voltage 101.000 A @ 208.0 V
47.000 A @ 460.0 V
94.000 A @ 230.0 V
Design Code B
Drip Cover Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 93.0 %
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device NO FEEDBACK
High Voltage Full Load Amps 47.0 a
Front Face Code Drip Cover Mounting
Front Shaft Indicator None
Heater Indicator No Heater
Insulation Class F
Inverter Code Not Inverter
KVA Code G
Lifting Lugs Vertical Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Termination Flying Leads
Motor Lead Quantity/Wire Size 9 @ 8 AWG
Motor Type 1248M
Mounting Arrangement F1
Number of Poles 4
Overall Length 33.87 IN
Power Factor 85
Product Family General Purpose
Pulley End Bearing Type Ball
Pulley Face Code P-Base
Pulley Shaft Indicator P-Base Groove & Key
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1775 rpm
Speed Code Single Speed
Motor Standards NEMA
Starting Method Direct on line
Thermal Device - Bearing None
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 None
Winding Thermal 2 None

Drawings

{{getDrwKindName(drawing.kind)}}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.

Nameplate

CAT.NO. VHM2539T
SPEC. 12E671X276
HP 40
VOLTS 230/460
AMP 94/47
RPM 1775
FRAME 324HP HZ 60 PH 3
SER.F. 1.15 CODE G DES B CLASS F
NEMA-NOM-EFF 93 PF 85
RATING 40C AMB-CONT
CC
DE 6313 ODE 6311
ENCL OPEN SN
NP1256L

Performance

Performance at 460 V, 60 Hz, 40 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque 0 LB-FT
No-Load Current 0 A
Line-Line Res. @ 25° C 0.158 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load 58° C
Temp. Rise @ S.F. Load 77° C
Start Configuration DOL
Break-Down Torque 337 LB-FT
Pull-Up Torque 139 LB-FT
Locked-Rotor Torque 171 LB-FT
Starting Current 300 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 7.0 52.0 73.0 82.0 85.0 87.0 86.0 86.0
Efficiency 0.0 88.1 92.4 93.2 93.0 92.4 91.5 92.6
Speed (RPM) 1,799 1,794 1,788 1,782 1,775 1,768 1,759 1,771
Line Amps 17.30 20.50 27.70 36.90 47.40 58.60 71.10 54.10

Performance Curves

Parts

Part Number Description Quantity
14GS1000SP GASKET, CONDUIT BOX 1.000 EA
HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA
10CB3500SP CONDUIT BOX LID, CAST 1.000 EA
51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 4.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (2400 bx)4/22 1.000 EA
LB1624 WARNING LABEL 1.000 EA
