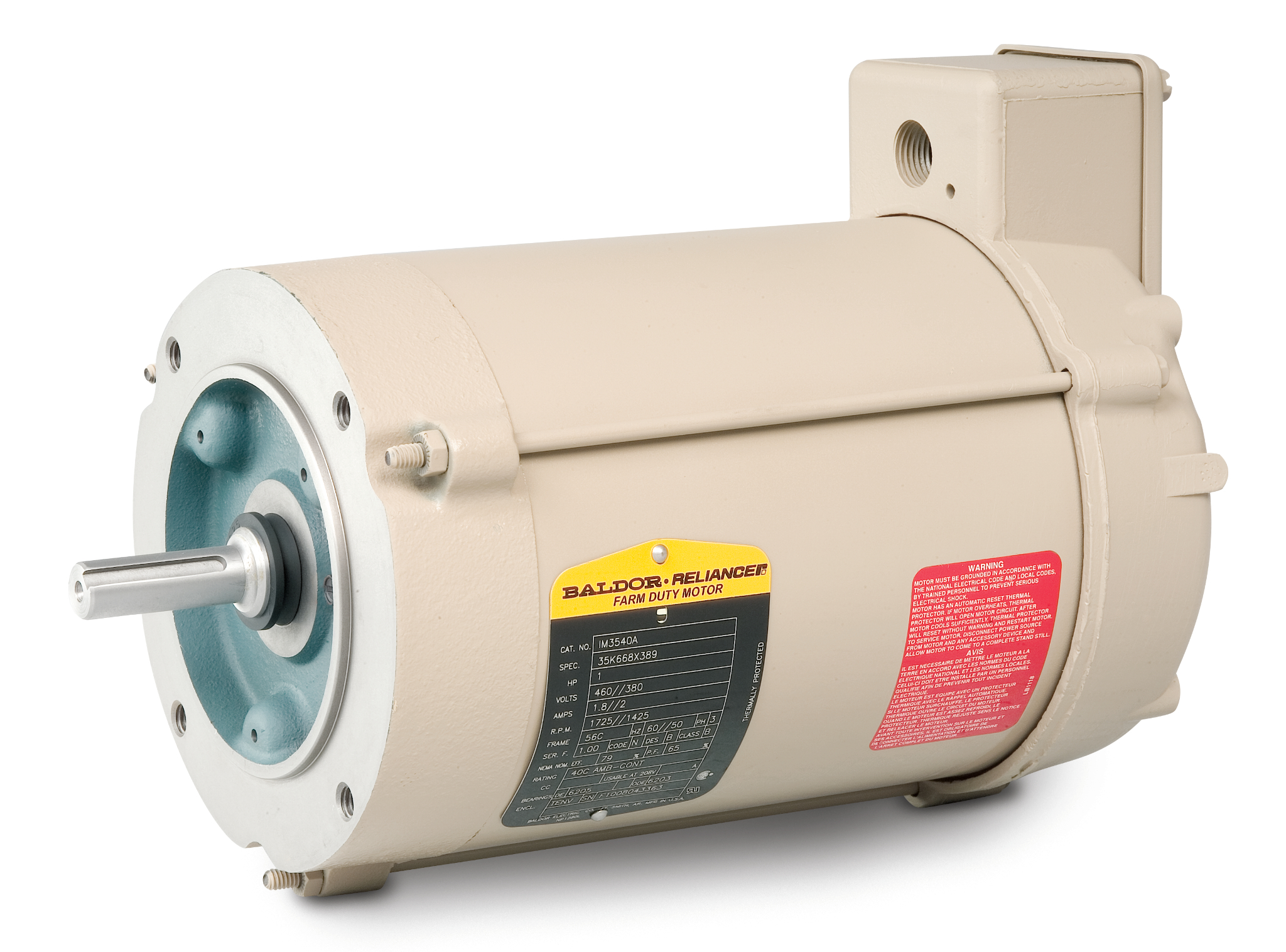

IM3540A-P

1HP, 1740//1430RPM, 3PH, 60//50HZ, 56YZ, 3523

Product Information Packet PDF

Ship Weight 43.000 LB
UPC 781568122402
Product has been discontinued

Specs

Catalog Number IM3540A-P
Enclosure TENV
Frame 56YZ
Frame Material Steel
Frequency 50.00 Hz
60.00 Hz
Motor Letter Type Three Phase
Output @ Frequency 1.000 HP @ 50 HZ
1.000 HP @ 60 HZ
Phase 3
Synchronous Speed @ Frequency 1500 RPM @ 50 HZ
Voltage @ Frequency 380.0 V @ 50 HZ
460.0 V @ 60 HZ
Haz Area Class and Group None
Haz Area Division Not Applicable
Agency Approvals CURUS
Ambient Temperature 40 °C
Auxiliary Box NO AUXILLARY BOX
Auxiliary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Current @ Voltage 1.700 A @ 460.0 V
1.800 A @ 380.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 80.0 %
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device NO FEEDBACK
High Voltage Full Load Amps 1.7 a
Front Face Code Standard
Front Shaft Indicator None
Heater Indicator No Heater
Insulation Class F
Inverter Code Not Inverter
KVA Code P
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Lead Hole
Motor Lead Termination Flying Leads
Motor Lead Quantity/Wire Size 3 @ 18 AWG
Motor Type 3523M
Mounting Arrangement F1
Number of Poles 4
Overall Length 11.02 IN
Power Factor 68
Product Family General Purpose
Product Type FARM DUTY
Pulley End Bearing Type No Bearing
Pulley Face Code No Endplate
Pulley Shaft Indicator Pump Coupling Shaft
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.00
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1430 rpm
1740 rpm
Speed Code Single Speed
Motor Standards NEMA
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location ES
Winding Thermal 2 None

Drawings

{{getDrwKindName(drawing.kind)}}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.

Nameplate

CAT.NO.
SPEC. 35K666M584G1
HP 1
VOLTS 460//380
AMP 1.7//1.8
RPM 1740//1430
FRAME 56YZ HZ 60//50 PH 3
SER.F. 1.00 CODE P DES B CL F
NEMA-NOM-EFF 80 PF 68
RATING 40C AMB-CONT
CC
DE ODE 6203
ENCL TENV SN
NP1280L

Performance

Performance at 460 V, 60 Hz, 1 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque 0 LB-FT
No-Load Current 0 A
Line-Line Res. @ 25° C 13.901 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load
Temp. Rise @ S.F. Load
Start Configuration DOL
Break-Down Torque 16.1 LB-FT
Pull-Up Torque 9.88 LB-FT
Locked-Rotor Torque 12 LB-FT
Starting Current 15.7 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 10.0 29.0 46.0 59.0 68.0 74.0 79.0 0.0
Efficiency 0.0 63.1 75.6 80.2 81.9 82.9 83.0 0.0
Speed (RPM) 1,799 1,789 1,780 1,770 1,760 1,750 1,739 0
Line Amps 1.23 1.28 1.37 1.52 1.71 1.91 2.14 0.00

Performance Curves

Performance at 380 V, 50 Hz, 1 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque 0 LB-FT
No-Load Current 0 A
Line-Line Res. @ 25° C 13.901 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load
Temp. Rise @ S.F. Load
Start Configuration DOL
Break-Down Torque 14.5 LB-FT
Pull-Up Torque 8.3 LB-FT
Locked-Rotor Torque 11 LB-FT
Starting Current 13.4 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 10.0 33.0 52.0 66.0 75.0 81.0 84.0 0.0
Efficiency 0.0 68.1 78.5 81.5 82.1 81.8 80.9 0.0
Speed (RPM) 1,499 1,489 1,477 1,465 1,451 1,436 1,420 0
Line Amps 1.20 1.27 1.40 1.59 1.84 2.14 2.50 0.00

Performance Curves

Parts

Part Number Description Quantity
51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 4.000 EA
LB1118 LABEL,WARNING (ROLL LABEL) 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (2500 bx)11/22 1.000 EA
