GP24060

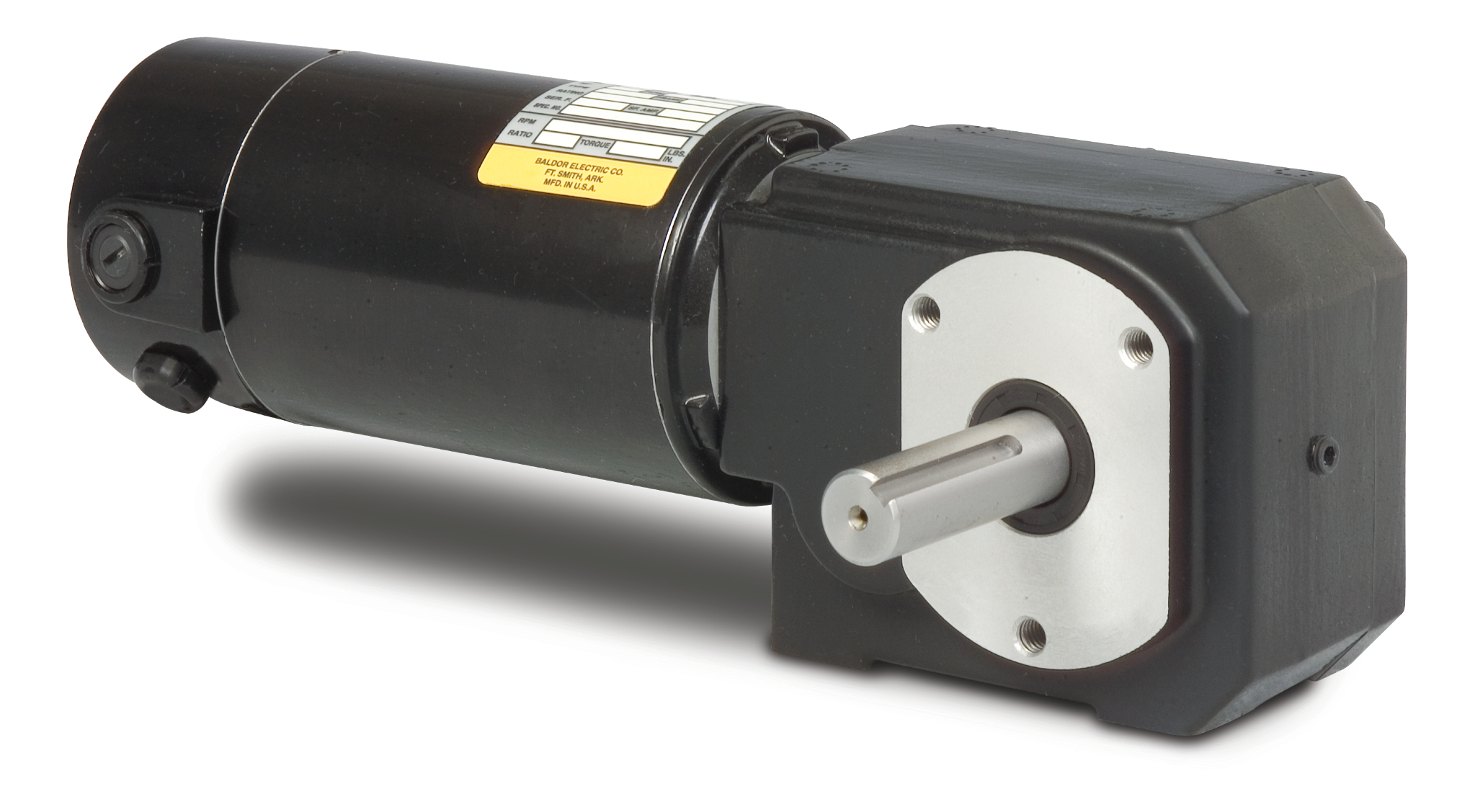

.13HP, DC, G-BOX WORM_HELICAL, TENV GM

Product Information Packet PDF

Ship Weight 16.000 LB
UPC 781568469361
Product has been discontinued

Specs

Catalog Number GP24060
Enclosure TENV
TENV
Frame Material Steel
Gear Ratio 60:1
Gear Style G
Gearhead Type RIGHT ANGLE
Motor Letter Type Permanent Magnet Brush Type
Mounting Arrangement 0.000
0.000
Output Speed 29 rpm
Output Torque 163.00 lb-in
Product Family General Purpose
General Purpose
Agency Approvals CE
UR
Ambient Temperature 40 °C
Duty Rating CONT
Insulation Class F
Motor Lead Exit Lead Hole In End Bell
Motor Lead Termination Cord
Motor Lead Quantity/Wire Size 2 @ 18 AWG
Motor Type 2424P
RoHS Status ROHS COMPLIANT
Service Factor 1.00
Shaft Rotation Reversible
