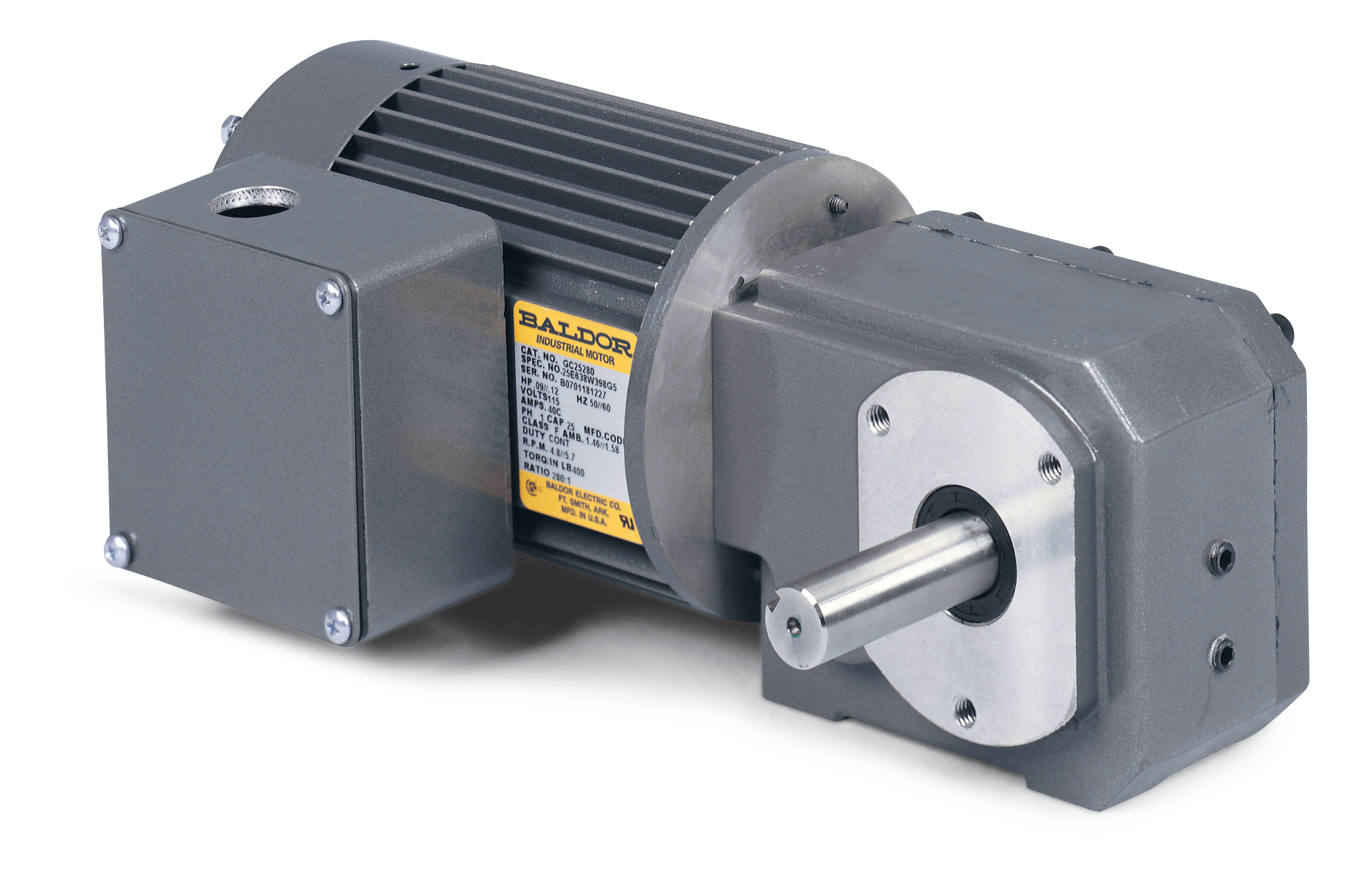

GM25060

G.M. K20XF 190/380-415//230/460 VAC

Product Information Packet PDF

Ship Weight 19.000 LB
UPC 781568469347
Product has been discontinued

Specs

Catalog Number GM25060
Enclosure TEFC
TEFC
Frame Material Aluminum
Aluminum
Frequency 50.00 Hz
60.00 Hz
60.00 Hz
50.00 Hz
Gear Ratio 60:1
Gear Style G
Gearhead Type RIGHT ANGLE
Motor Letter Type Three Phase
Number of Poles 4
4
Output Speed 23 rpm
28 rpm
Output Torque 250.00 lb-in
Phase 3
3
Speed 1350 rpm
1650 rpm
1350 rpm
1650 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Voltage 190 V
230 V
380 V
415 V
460 V
Voltage @ Frequency 380.0 V @ 50 HZ
230.0 V @ 60 HZ
190.0 V @ 50 HZ
460.0 V @ 60 HZ
415.0 V @ 50 HZ
Agency Approvals UR
CSA
CE
Ambient Temperature 40 °C
Connection Diagram CD0005A05
Current @ Voltage .740 A @ 230.0 V
.710 A @ 190.0 V
.370 A @ 460.0 V
.370 A @ 415.0 V
.360 A @ 380.0 V
Dimensional Drawing Numbers 25E638W234G4
Duty Rating CONT
CONT
Feedback Signal NONE
Heater Indicator No Heater
Insulation Class F
F
Inverter Code Not Inverter
KVA Code -
-
Motor Lead Exit Conduit Box
Motor Lead Termination None
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Type 2516M
Product Family General Purpose
RoHS Status ROHS COMPLIANT
Service Factor 1.00
Shaft Rotation Reversible
Starting Method Full Voltage
Thermal Device - Winding None
Winding Thermal 1 None
Winding Thermal 2 None
