GHM35050

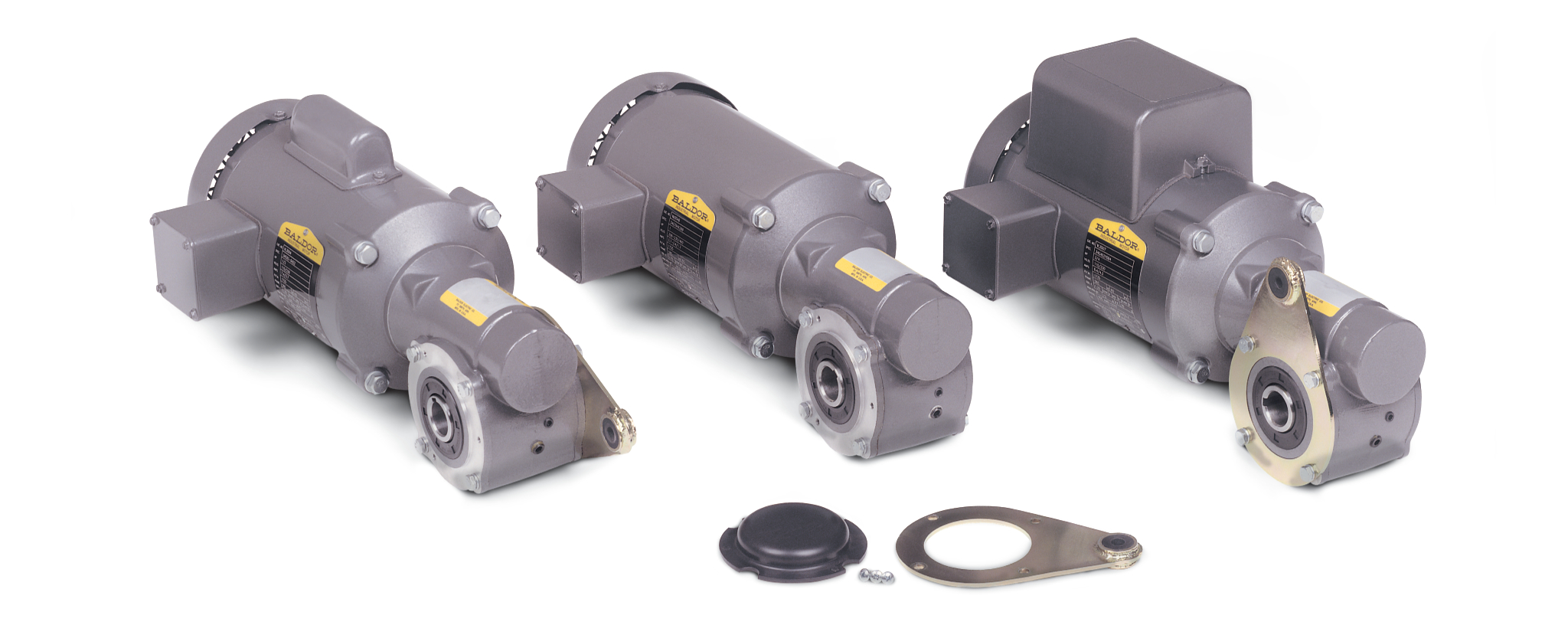

G.M. Q16PF 230/460VAC 50:1 35 RPM

Product Information Packet PDF

Ship Weight 40.000 LB
UPC 781568464694
Product has been discontinued

Specs

Catalog Number GHM35050
Enclosure TEFC
TEFC
Frame Material Steel
Steel
Gear Ratio 50:1
Gear Style H
Gearhead Type RIGHT ANGLE
Motor Letter Type Three Phase
Number of Poles 4
4
Output Speed 35 rpm
Output Torque 609.00 lb-in
Phase 3
3
Dimensional Drawing Numbers 34A63-872K6
Duty Rating CONT
CONT
Feedback Signal NONE
Heater Indicator No Heater
Insulation Class B
B
Inverter Code Not Inverter
Motor Lead Exit Conduit Box
Motor Lead Termination Flying Leads
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Product Family General Purpose
Shaft Rotation Reversible
Starting Method Full Voltage
Thermal Device - Winding None
Winding Thermal 1 None
Winding Thermal 2 None
