GCP25052

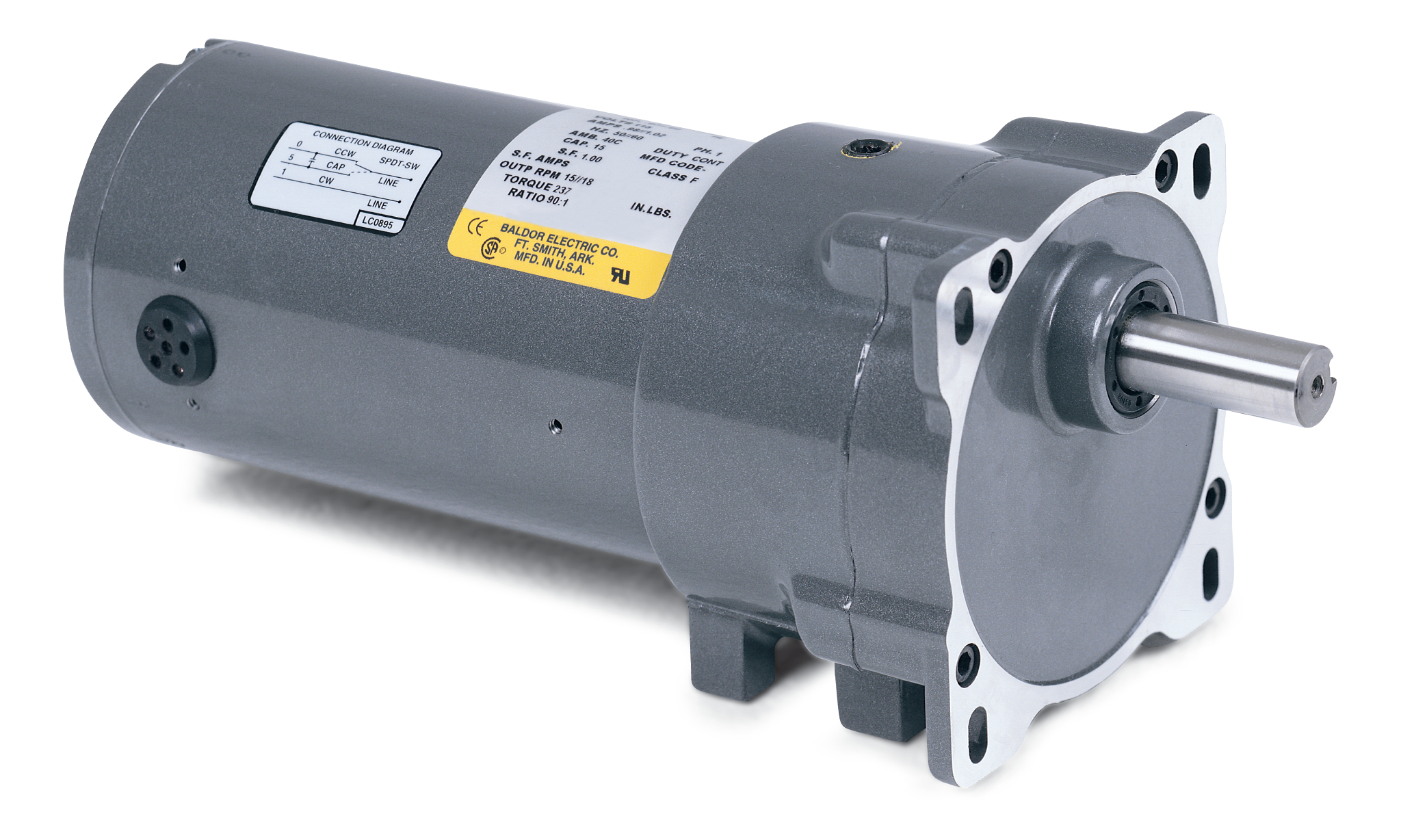

G.M. 2524 PSM 40:1 RSB TEFC

Product Information Packet PDF

Ship Weight 14.000 LB
UPC 781568179697
Product has been discontinued

Specs

Catalog Number GCP25052
Enclosure TEFC
TEFC
Frame Material Steel
Steel
Frequency 50.00 Hz
60.00 Hz
50.00 Hz
60.00 Hz
Gear Ratio 40:1
Gear Style PSM
Gearhead Type PARALLEL SHAFT
Motor Letter Type Split Phase
Number of Poles 4
4
Output Speed 36 rpm
43 rpm
Output Torque 149.00 lb-in
Phase 1
1
Speed 1400 rpm
1650 rpm
1400 rpm
1650 rpm
Synchronous Speed @ Frequency 1500 RPM @ 50 HZ
Voltage 115 V
Voltage @ Frequency 115.0 V @ 60 HZ
115.0 V @ 50 HZ
Agency Approvals UR
CSA
CE
Ambient Temperature 40 °C
Connection Diagram CD1917
Current @ Voltage 2.700 A @ 115.0 V
2.500 A @ 115.0 V
Dimensional Drawing Numbers 25E649W026G6
Duty Rating CONT
CONT
Feedback Signal NONE
Heater Indicator No Heater
Insulation Class F
F
Inverter Code Not Inverter
KVA Code S
S
Motor Lead Exit Conduit Box
Motor Lead Termination Flying Leads
Motor Lead Quantity/Wire Size 4 @ 18 AWG
Motor Type 2524S
Product Family General Purpose
RoHS Status ROHS COMPLIANT
Service Factor 1.00
Shaft Rotation Reversible
Starting Method Full Voltage
Thermal Device - Winding None
Winding Thermal 1 None
Winding Thermal 2 None
