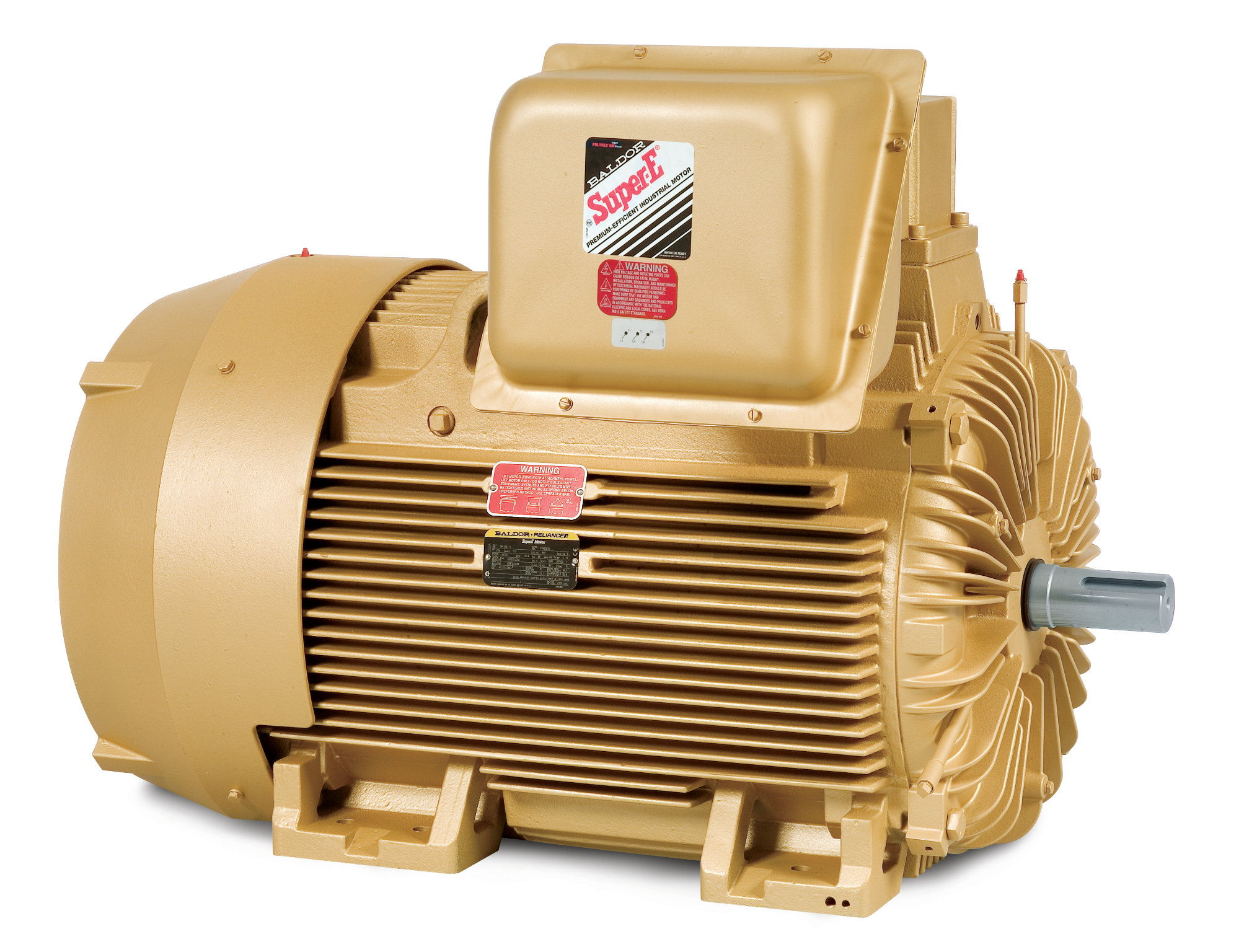

EM4406T-4

150HP, 1785RPM, 3PH, 60HZ, 445T, A4488M, TEFC

Product Information Packet PDF

List Price 18,443.00 USD
Multiplier Symbol LS
Ship Weight 1,826 LB
UPC 781568499672
Output 150.000 hp
Phase 3
Synchronous Speed 1,800 rpm
Frequency 60 Hz
Voltage 460 V
Enclosure TEFC
Frame Material Iron
Frame 445T
XP Division Not Applicable
Brand Baldor-Reliance
Agency Approvals CCSA US
CSA EEV
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type POLYREX EM (-20F +300F)
Current 169.0 A
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 95.8%
Feedback Device No feedback
Heater Indicator No heater
High Voltage Full Load Amps 169.0 A
Insulation Class F
Inverter Code Inverter ready
KVA Code F
Lifting Lugs Std Lifting Lugs
Motor Lead Quantity/Wire Size 6 @ 2 AWG
Motor Standards NEMA
Motor Type A4488M
Mounting Arrangement F1
Number of Poles 4
Overall Length 44.75 in
Power Factor 86
Product Family Other
Pulley End Bearing Type Ball Bearing
Pulley Face Code Standard
Service Factor 1.15
Shaft Diameter 0 in
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1,785 rpm
Speed Code Single Speed
Starting Method Y-Start/D-Run
Thermal Device - Bearing None
Thermal Device - Winding None

Part Number: {{ selectedMaterial }}
View Product Details

{{ getDrwKindName(drawing.kind) }}

CAD File
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.
Baldor is a Member of the Part Community by CADENAS
CAT.NO. EM4406T-4 SPEC NO. P44G3907
HP 150 AMPS 169 VOLTS 460 DESIGN B
FRAME 445T RPM 1785 HZ 60 AMB 40 SF 1.15
DRIVE END BEARING 90BC03J30X PHASE 3 DUTY CONT INSUL.CLASS F
OPP D.E. BEARING 90BC03J30X TYPE P ENCL TEFC CODE F
SER.NO. POWER FACTOR 86 NEMA-NOM-EFFICIENCY 95.8
MAX CORR KVAR 30.0 GUARANTEED EFFICIENCY 95.0
NEMA NOM/CSA QUOTED EFF
MOTOR WEIGHT
NP2383L
Part Number Description Quantity List Price
078548001R FAN KB 234/150 (84) 400 1.000 EA 98.00 USD
Part Number Description List Price
089490106A G28 C-FACE BRKT MACH-6318 089490105WCA 1,802.00 USD
