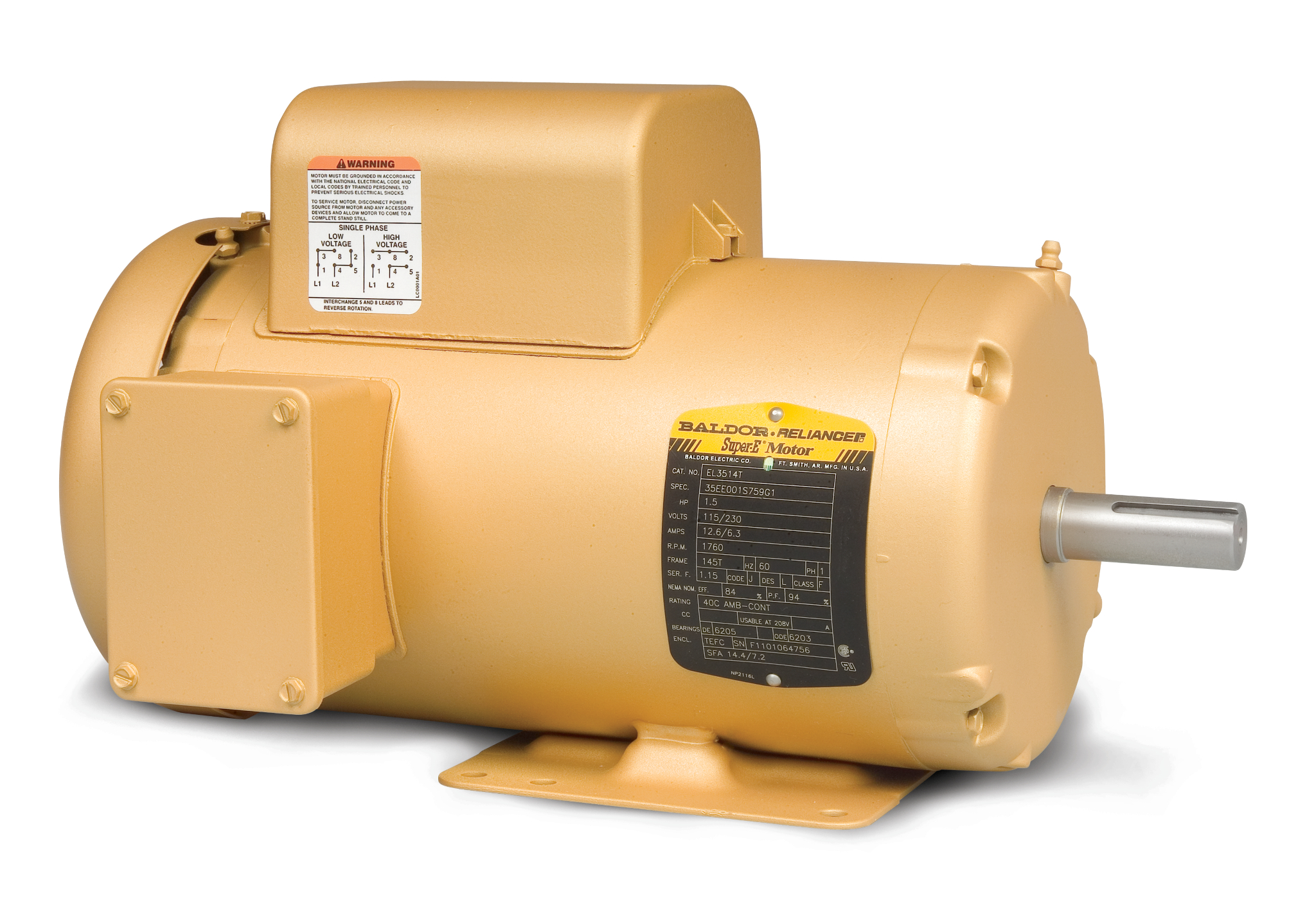

EL3504

.5HP, 1745RPM, 1PH, 60HZ, 56, 3424LC, TEFC, F1

Product Information Packet PDF

List Price 547.00 USD
Multiplier Symbol K
Ship Weight 30 LB
UPC 781568138601

Specs

Output 0.500 hp
Phase 1
Synchronous Speed 1,800 rpm
Frequency 60 Hz
Voltage 230 V
115 V
Frame Material Steel
Frame 56
XP Class and Group NONE
XP Division Not Applicable
Brand Baldor-Reliance
Agency Approvals CSA
CSA EEV
UR
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type POLYREX EM (-20F +300F)
Blower None
Current 4.6 A @ 115 V
2.3 A @ 230 V
Design Code N
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 78.5%
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device No feedback
Front Face Code Standard
Front Shaft Indicator None
Heater Indicator No heater
High Voltage Full Load Amps 2.3 A
Insulation Class F
Inverter Code Not inverter
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit KO Box
Motor Lead Quantity/Wire Size 6 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Motor Type 3424LC
Number of Poles 4
Overall Length 11.97 in
Power Factor 89
Product Family General Purpose
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status RoHS Compliant
Service Factor 1.25
Shaft Diameter 0.625 in
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1,745 rpm
Speed Code Single Speed
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor

Drawings

{{ getDrwKindName(drawing.kind) }}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.
Baldor is a Member of the Part Community by CADENAS

Nameplate

CAT.NO. EL3504
SPEC. 34G375X29G1
HP .5
VOLTS 115/230
AMP 4.6/2.3
RPM 1745
FRAME 56 HZ 60 PH 1
SER.F. 1.25 CODE K DES N CL F
NEMA-NOM-EFF 78.5 PF 89
RATING 40C AMB-CONT
CC USABLE AT 208V
DE 6203 ODE 6203
ENCL TEFC SN
SFA 5.6/2.8
NP2117L

Performance

Performance at 230 V, 60 Hz, 0.5 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque 0 LB-FT
No-Load Current 0 A
Line-Line Res. @ 25° C 5.16 Ohms A Ph / 4.01 Ohms B Ph
Temp. Rise @ Rated Load 57° C
Temp. Rise @ S.F. Load 71° C
Start Configuration DOL
Break-Down Torque 3.6 LB-FT
Pull-Up Torque 3.1 LB-FT
Locked-Rotor Torque 3.7 LB-FT
Starting Current 18.1 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 48.0 64.0 79.0 87.0 90.0 92.0 93.0 92.0
Efficiency 0.0 56.9 72.4 76.5 78.4 77.8 75.8 77.8
Speed (RPM) 1,798 1,786 1,773 1,758 1,742 1,722 1,699 1,722
Line Amps 1.00 1.00 1.40 1.80 2.30 2.80 3.40 2.80

Performance Curves

Performance at 115 V, 60 Hz, 0.5 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque 0 LB-FT
No-Load Current 0 A
Line-Line Res. @ 25° C 1.18 Ohms A Ph / 4.17 Ohms B Ph
Temp. Rise @ Rated Load 57° C
Temp. Rise @ S.F. Load 71° C
Start Configuration DOL
Break-Down Torque 3.6 LB-FT
Pull-Up Torque 3.1 LB-FT
Locked-Rotor Torque 3.7 LB-FT
Starting Current 36.2 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 48.0 73.0 81.0 89.0 89.0 91.0 92.0 91.0
Efficiency 0.0 57.0 72.4 76.9 78.5 78.1 75.9 78.1
Speed (RPM) 1,798 1,786 1,773 1,758 1,742 1,722 1,699 1,722
Line Amps 2.00 2.00 2.80 3.60 4.60 5.60 6.80 5.60

Performance Curves

Parts

Part Number Description Quantity List Price
OC3020F12SP CAPACITORS 20 MFD 370 VAC 1.000 EA 39.00 USD
EC1270A02SP ELEC CAP, 270-324 MFD, 125V, 1.48D X 3. 1.000 EA 24.00 USD
34EP3102A01SP FR ENDPLATE, MACH 1.000 EA 106.00 USD
34EP3102A02SP FR/PU ENDPLATE, MACH 1.000 EA 39.00 USD
34FN3002A01SP EXTERNAL FAN, PLASTIC, .637/.639 HUB W/ 1.000 EA 23.00 USD
34FH4002A01SP IEC FH NO GREASER PRIMED 1.000 EA 38.00 USD
MN416A01 TAG-INSTAL-MAINT no wire (1100/bx) 11/14 1.000 EA 0.04 USD

Accessories

Part Number Description List Price
34-171 C FACE KIT 60.00 USD
