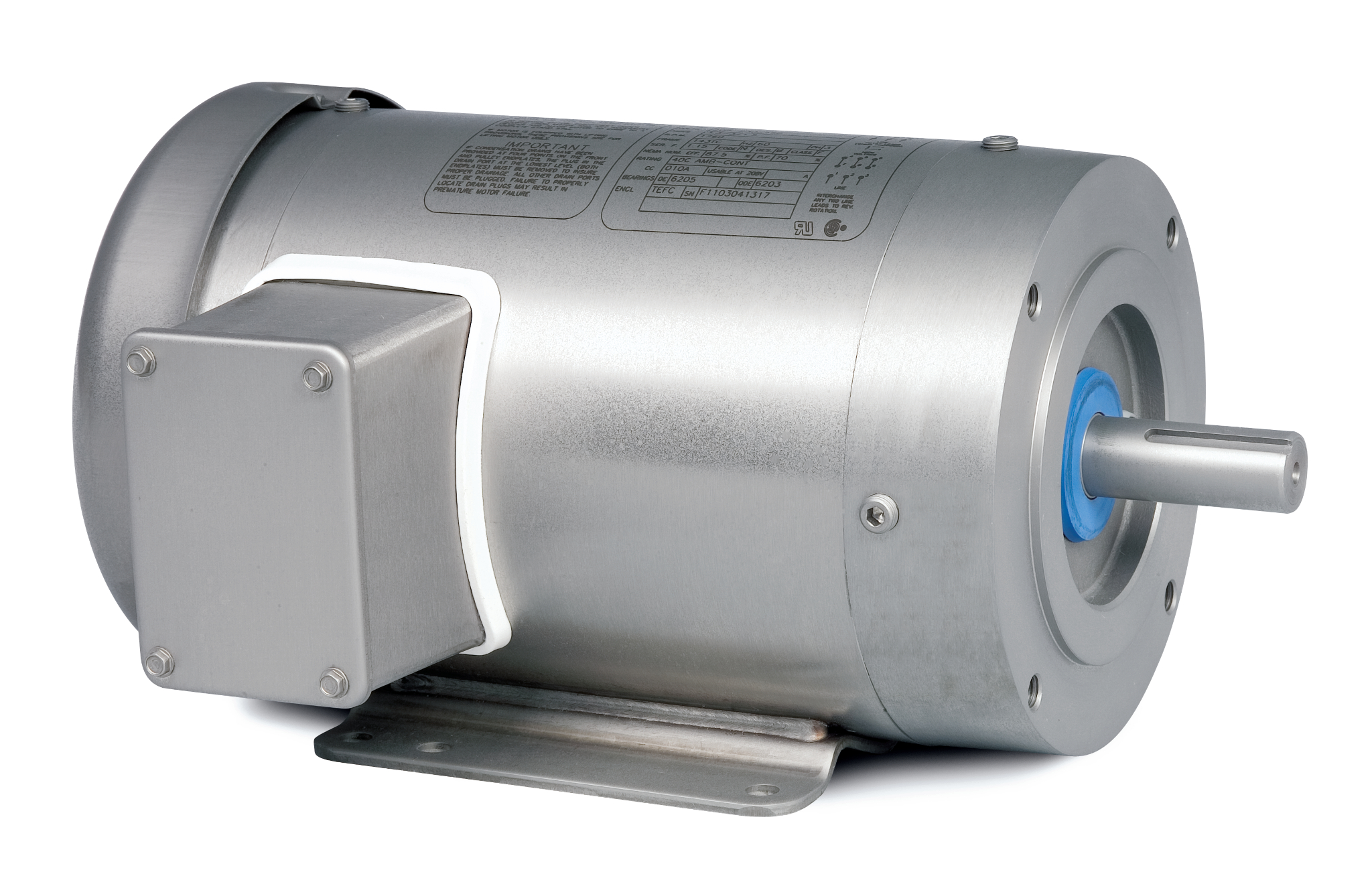

CESSWDM3546T-5

1HP, 1765RPM, 3PH, 60HZ, 143TC, 3524M, TEFC, F1

Product Information Packet PDF

List Price 1,426.00 USD
Multiplier Symbol WD
Ship Weight 51 LB
UPC 781568538883
Output 1.000 hp
Phase 3
Synchronous Speed 1,800 rpm
Frequency 60 Hz
Voltage 575 V
Enclosure TEFC
Frame Material Stainless Steel
Frame 143TC
XP Division Not Applicable
Brand Baldor-Reliance
Agency Approvals CSA
UR
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type POLYREX EM (-20F +300F)
Blower None
Current 1.3 A
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 87.5%
Electrically Isolated Bearing No electrically isolated
Feedback Device No feedback
Front Face Code Standard
Front Shaft Indicator None
Heater Indicator No heater
High Voltage Full Load Amps 1.3 A
Insulation Class F
Inverter Code Inverter ready
KVA Code N
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit KO Box
Motor Lead Quantity/Wire Size 3 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Motor Type 3524M
Mounting Arrangement F1
Number of Poles 4
Overall Length 13.42 in
Power Factor 70
Product Family Wash Down All Stainless Steel
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen No Rodent Screen
Service Factor 1.15
Shaft Diameter 0.875 in
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1,765 rpm
Speed Code Single Speed
Starting Method DOL
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 None
Winding Thermal 2 None

{{ getDrwKindName(drawing.kind) }}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.
Baldor is a Member of the Part Community by CADENAS
CAT.NO. CESSWDM3546T-5
SPEC. 35VV818M398G1
HP 1
VOLTS 575
AMP 1.25
RPM 1765
FRAME 143TC HZ 60 PH 3
SER.F. 1.15 CODE N DES B CLASS F
NEMA-NOM-EFF 87.5 PF 70
RATING 40C AMB-CONT
CC 010A USABLE AT 208V
DE 6205 ODE 6203
ENCL TEFC SN
NP1951A05

Performance at 575 V, 60 Hz, 1 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque 0 LB-FT
No-Load Current 0 A
Line-Line Res. @ 25° C 18.7 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load 26° C
Temp. Rise @ S.F. Load 30° C
Start Configuration DOL
Break-Down Torque 16 LB-FT
Pull-Up Torque 9.24 LB-FT
Locked-Rotor Torque 11.2 LB-FT
Starting Current 12.2 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 7.0 28.0 47.0 60.0 70.0 76.0 80.0 74.0
Efficiency 0.0 73.9 83.4 86.4 87.9 87.1 86.9 87.4
Speed (rpm) 1,799 1,793 1,785 1,778 1,771 1,762 1,754 1,766
Line Amps 0.83 0.87 0.96 1.08 1.24 1.42 1.61 1.35

Performance Curves

Part Number Description Quantity List Price
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 11/14 1.000 EA 0.04 USD
